TESTING
Mechanical tests - Vibration
Professional approach
Wide range of services provided
Professional approach
Wide range of services provided
Description:
EVPÚ in an accredited laboratory provides:
- sinusoidal vibration test at constant frequency;
- sinusoidal vibration test swept at 1octave/min;
- random vibration test (broad spectrum);
- classical shock test, max. 20g/6 ms;
Main instrumentation:

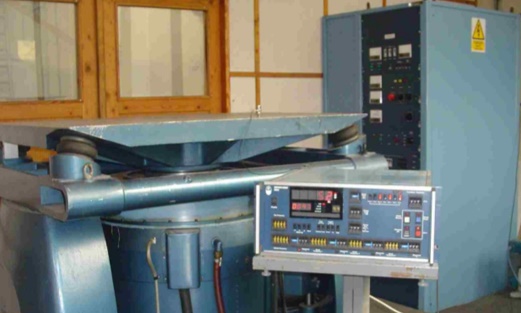

- Vibration device DERRITRON VP 400, electromagnetic vibration device, 10Hz- 2500Hz, sine force 20kN, random force 10.6kN, max. displacement 25.4mm, max. load 800kg;
- TW 12000 amplifier

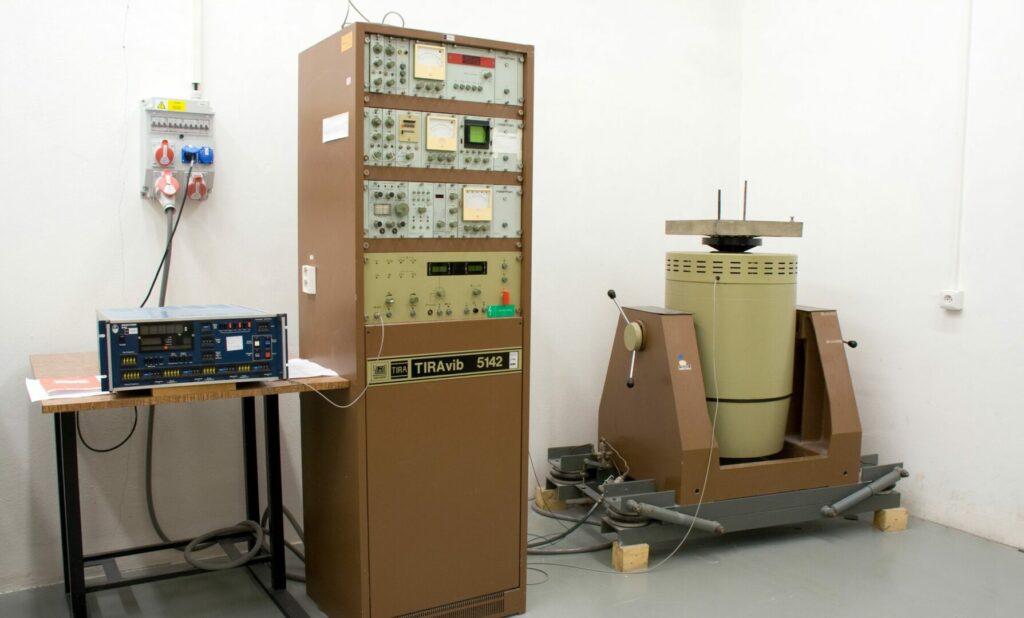

- Vibration device TIRAvib 5142, electromagnetic vibration device. 5 Hz – 5000 Hz, sine force 4 kN, max displacement 20 mm, max load 100 kg;
Dimensions of the working platform:
- Basic, diameter 300 mm;

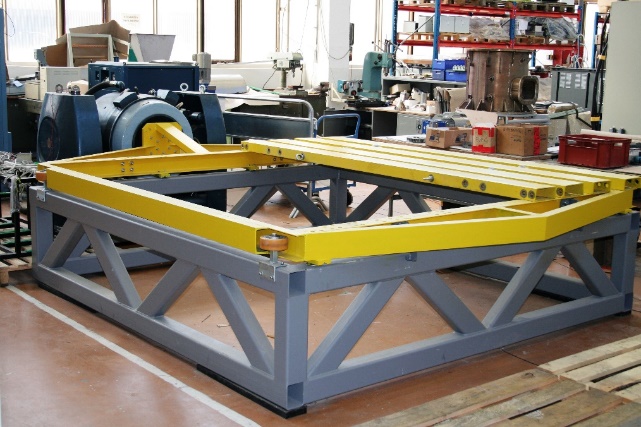

- Expansion table (load support platform), dimensions 800 x 1200 mm;
